Power Electronics Lab Trainer Kits

“PSI” Makes Power Electronics Lab Trainers.

Our Featured products are as follows:

• SCR, DIAC & TRIAC Characteristics Trainer Kit.
• SMPS Trainer Kit.
• SCR Firing Circuits.
• Phase control using Triac.
• SCR Single Phase Half Wave, Full Wave, Fully Controlled Bridge Rectifier/Converter.
• DC Motor speed Control using SCR (with tachometer).
• Three Phase Half Controlled Bridge Converter with R, RL Load.
• Speed Control of DC Motor using Three Phase Half Controlled Converter.
• Three Phase Fully Controlled Bridge Converter with R Load
• Single Phase Cycloconverter


---

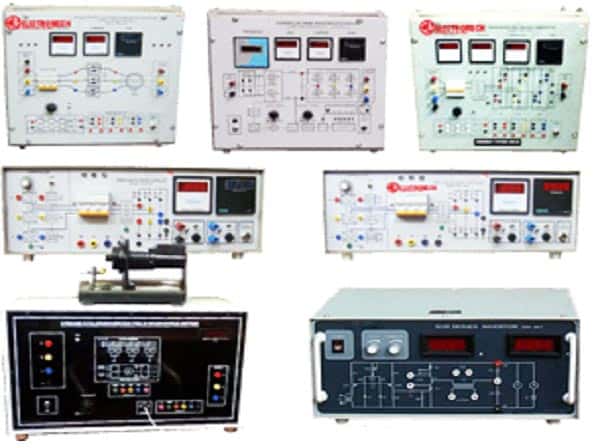

Electrical Drive Lab Trainer Kits

“PSI” Make Electrical Drive Lab Trainer Kits is well appreciated by various Engineering Colleges & Research Centers.

Our Feature Products:

• Three Phase Half Controlled Bridge Converter Trainer kit.
• Study and test the firing circuit of three phase half controlled bridge converter.
• Three Phase Half Controlled Bridge Converter Trainer kit with R and RL loads.
• Study and obtain waveforms of three phase half controlled bridge converter with R and RL loads.
• Three Phase Full Controlled Bridge Converter Trainer kit.
• Study and test the firing circuit of three phase full controlled bridge converter.
• Three Phase Full Controlled Bridge Converter Trainer kit with R and RL Load.
• Study and obtain waveforms of three phase full controlled bridge converter with R and RL loads.
• Study and test three phase AC voltage regulator Trainer Kit.
• Control speed of dc motor using three phase half controlled bridge converter. Plot armature voltage versus speed characteristic Trainer Kit.
• Control speed of DC motor using three phase full controlled bridge converter. Plot armature voltage versus speed characteristic Trainer Kit.
• Control speed of a three phase induction motor in variable stator voltage mode using three phase AC voltage regulator Trainer Kit.
• Control speed of a three phase BLDC motor Trainer kit.
• Control speed of a three phase PMSM motor using frequency and voltage control Trainer Kit.
• Control speed of universal motor using AC voltage regulator Trainer Kit.
• Study three phase dual converter Trainer Kit.
• Study speed control of DC motor using three phase dual converter Trainer Kit.
• Study three-phase cycloconverter and speed control of synchronous motor using cycloconverter Trainer Kit.
• Control of three phase Induction Motor in variable frequency V/f constant mode using three Phase Inverter Trainer Kit.
